E1M-X Product Line

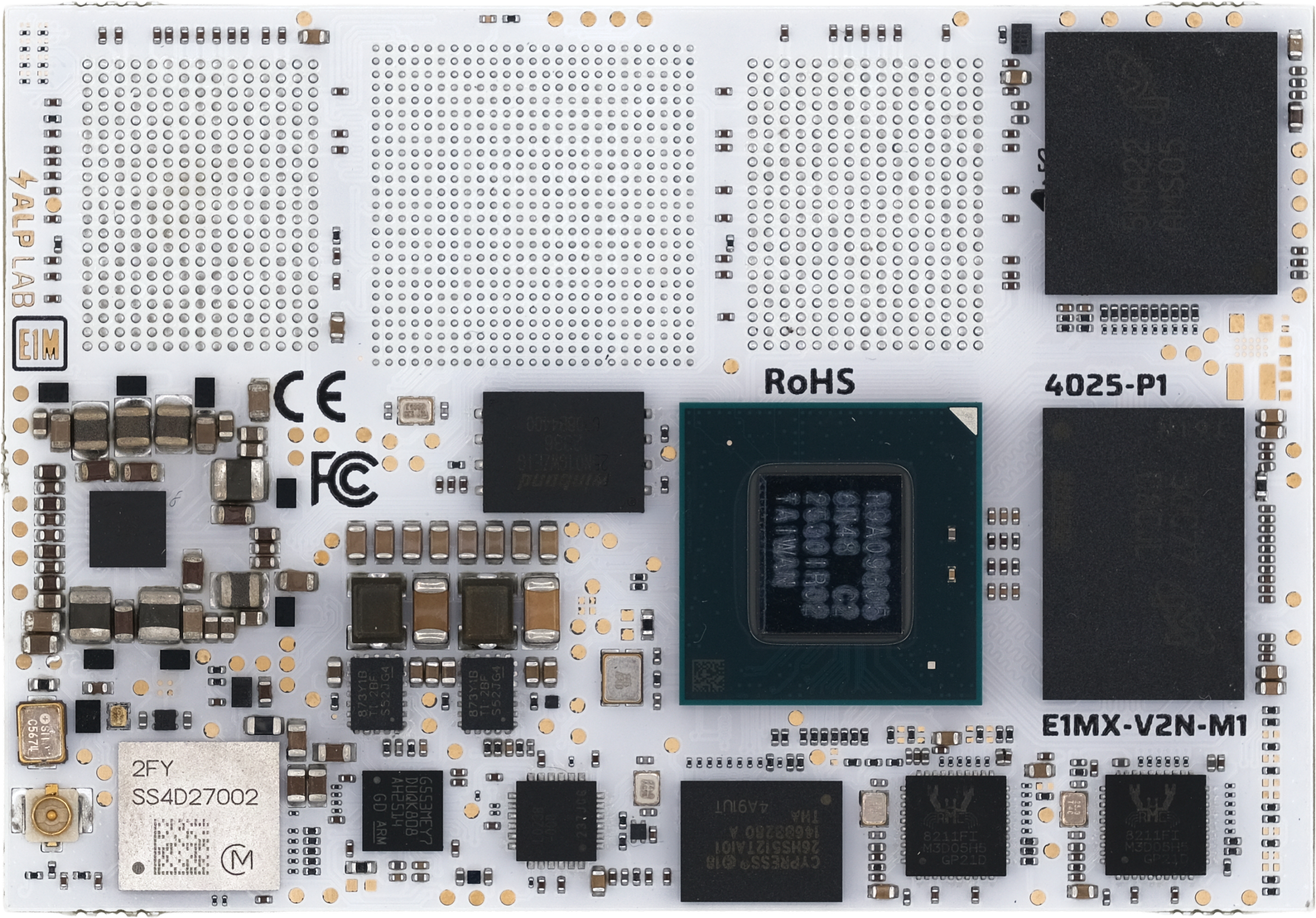

E1M-X V2N
Efficient, Cost-Optimized Vision SoM
The E1M-X V2N is an efficient, cost-optimized SoM built on the Renesas RZ/V2N core. it has an integrated DRP-AI3 engine delivering 15 sparse TOPS / 4 dense TOPS. This makes it ideal for compact, low-power AI vision applications where efficiency and thermal performance matter more than maximum throughput.
Starting from
$89
Key Highlights
Renesas RZ/V2N Quad Cortex -A55 + Cortex-M33
Industrial temperature support
DRP-AI3 15 TOPS sparse / 4 TOPS dense
LPDDR4x + eMMC variants (same footprint)
Optional Wi-Fi 6 + Bluetooth 5
H.264/H.265 hardware encoder/decoder
Up to 8 cameras (2 × 4-lane MIPI-CSI2)
Small form factor design
Dimensions
65 × 45 × 5 mm
CPU
Quad Cortex-A55 + Cortex-M33
AI Accelerator
DRP-AI3 (integrated)
DRP AI3
15 TOPS sparse / 4 TOPS dense
Camera Interface
2 × 4-lane MIPI-CSI2 (up to 8 cameras)
Video
H.264/H.265 hardware encode/decode
Connectivity
Optional Wi-Fi 6 + Bluetooth 5
Temperature Range
Industrial Grade
Specification
Dimensions
65 × 45 × 5 mm
CPU
Quad Cortex-A55 + Cortex-M33
AI Accelerator
DRP-AI3 (integrated)
DRP AI3
15 TOPS sparse / 4 TOPS dense
Camera Interface
2 × 4-lane MIPI-CSI2 (up to 8 cameras)
Video
H.264/H.265 hardware encode/decode
Connectivity
Optional Wi-Fi 6 + Bluetooth 5
Temperature Range
Industrial Grade
Documents
Alp Lab E1M-X V2N HW Design Guide [Coming Soon].pdf
Alp Lab E1M-X V2N EVK Getting Started [Coming Soon].pdf
Alp Lab E1M-X EVK Schematic & PCB [Coming Soon].zip

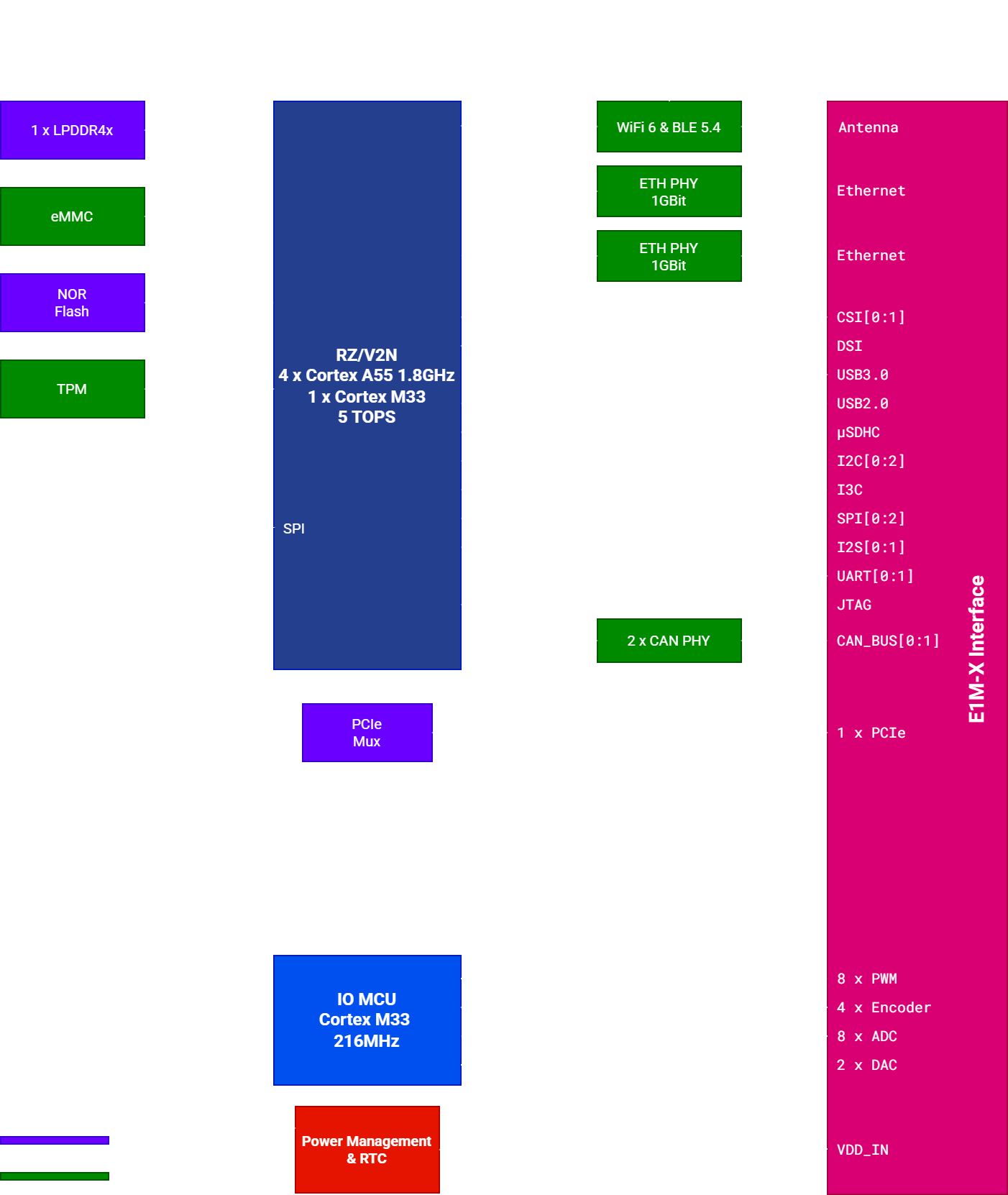

Block Diagram
Specification
Dimensions
65 × 45 × 5 mm
CPU
Quad Cortex-A55 + Cortex-M33
AI Accelerator
DRP-AI3 (integrated)
DRP AI3
15 TOPS sparse / 4 TOPS dense
Camera Interface
Video
H.264/H.265 hardware encode/decode
Connectivity
Optional Wi-Fi 6 + Bluetooth 5
Temperature Range
-40°C to +85°C
Industrial Grade
Documents
|
Type
|
Title
|
Revision
|
Date
|
|---|---|---|---|
|
Brochure
|
1.0
|
Jan - 2026
|
|
|
Datasheet
|
0.1
|
Dec - 2025
|
|
|
Guide
|
Alp Lab E1M-X V2N HW Design Guide [Coming Soon].pdf
|
—
|
—
|
|
Guide
|
Alp Lab E1M-X V2N EVK Getting Started [Coming Soon].pdf
|
—
|
—
|
|
Schematic
|
Alp Lab E1M-X EVK Schematic & PCB [Coming Soon].zip
|
—
|
—
|
|
CAD
|
0.9
|
Dec - 2025
|
|
|
3D
|
0.9
|
Dec - 2025
|
Ordering Options
|
MPN
|
CPU
|
MPU
|
#
|
GHz
|
MCU
|
MHz
|
RAM
|
ROM
|
GPU
|
ISP
|
AI
|
WiFi / BLE
|
Temperature
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E1M-V2N101
|
R9A09G056N44GBG
|
A55
|
4
|
1.8
|
M33
|
200
|
4 GB
|
4 GB
|
Y
|
Y
|
4 TOPS
|
Y
|
-40°C ~ 85°C
|
|
|
E1M-V2N102
|
R9A09G056N44GBG
|
A55
|
4
|
1.8
|
M33
|
200
|
8 GB
|
16 GB
|
Y
|
Y
|
4 TOPS
|
Y
|
-40°C ~ 85°C
|
|
Alp Lab supports custom options. Please contact us.

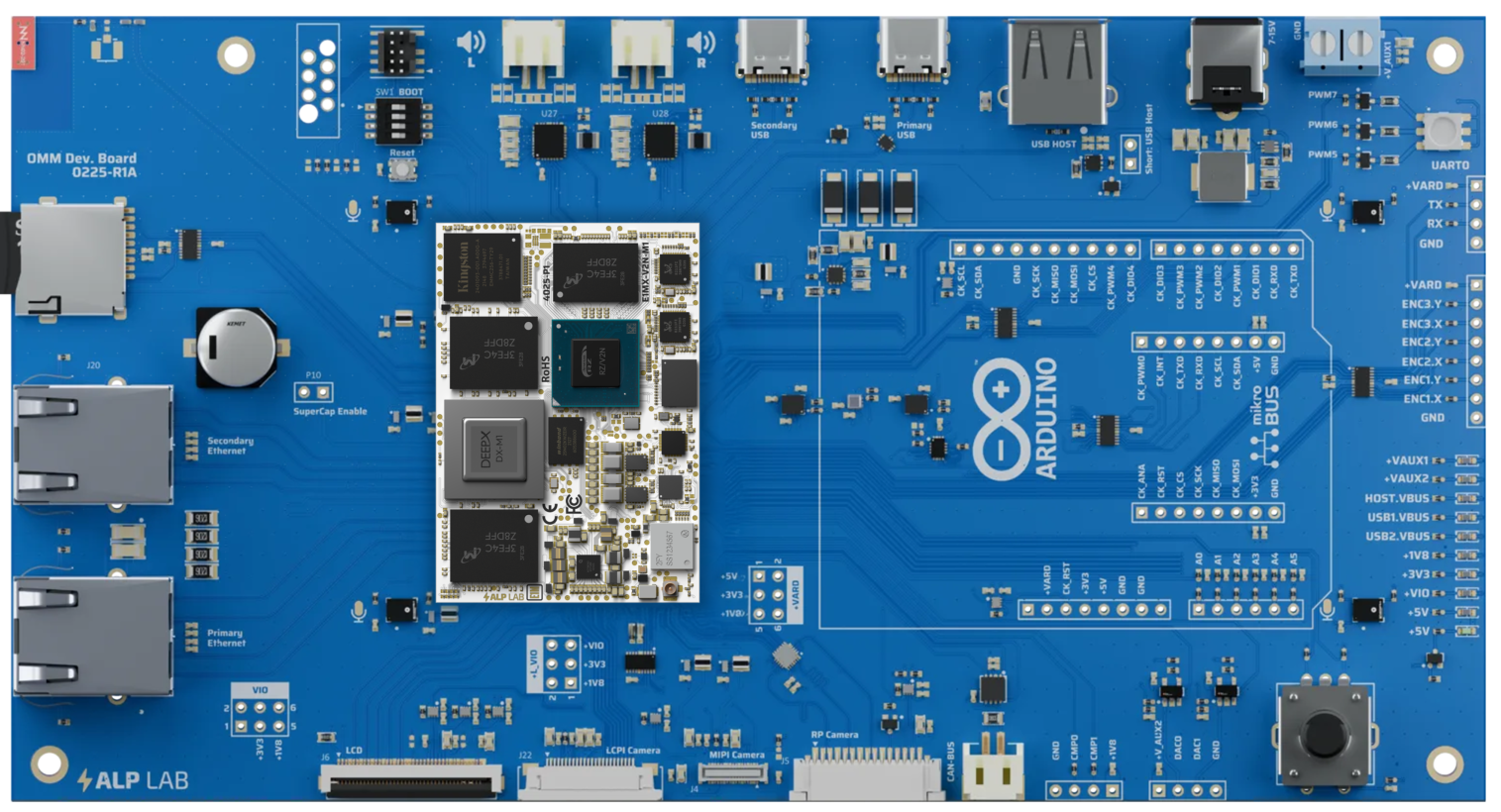

Evaluation Kit
This evaluation kit provides a complete hardware platform for testing, prototyping, and developing applications using the integrated SoM and onboard connectivity features.
