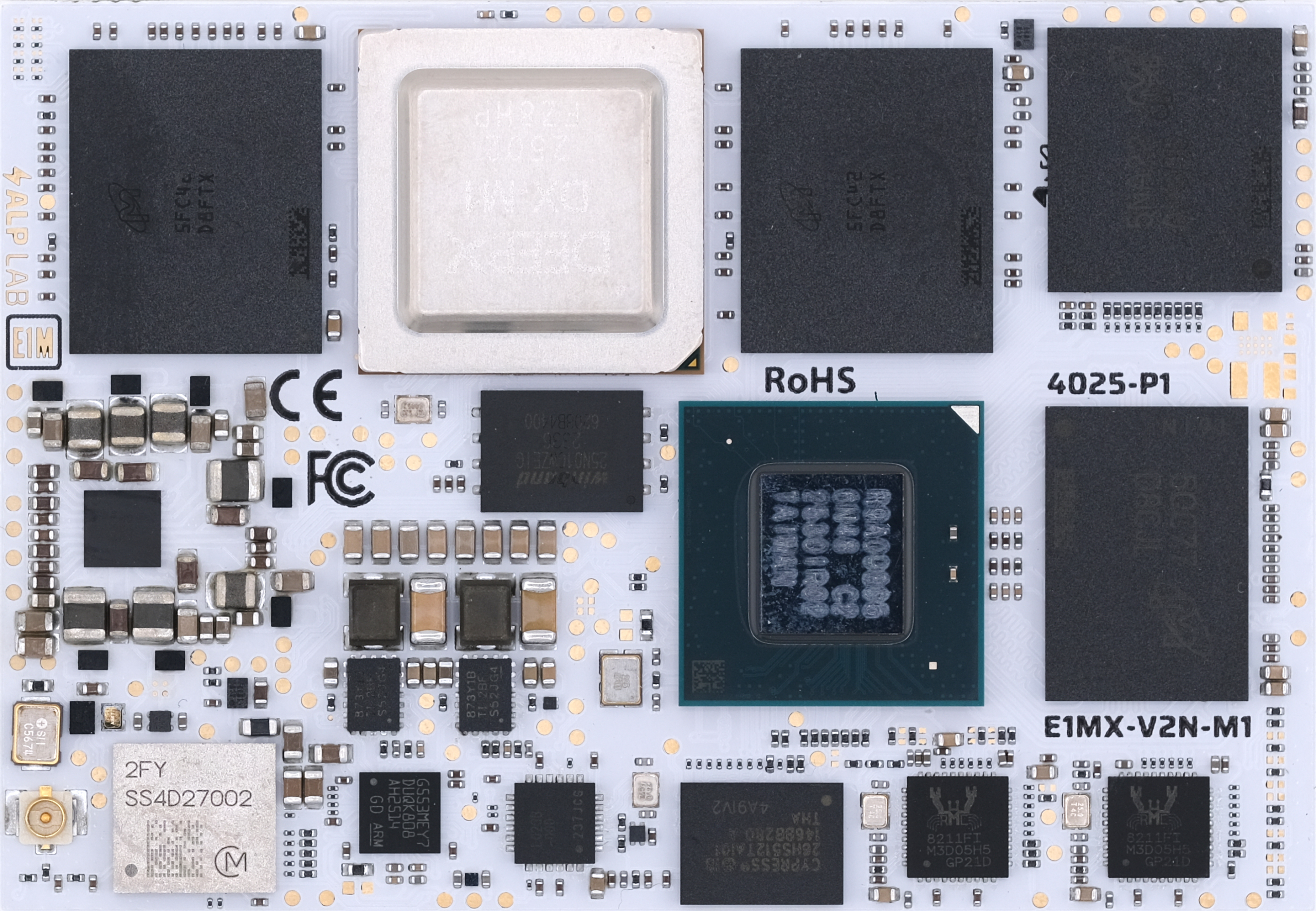

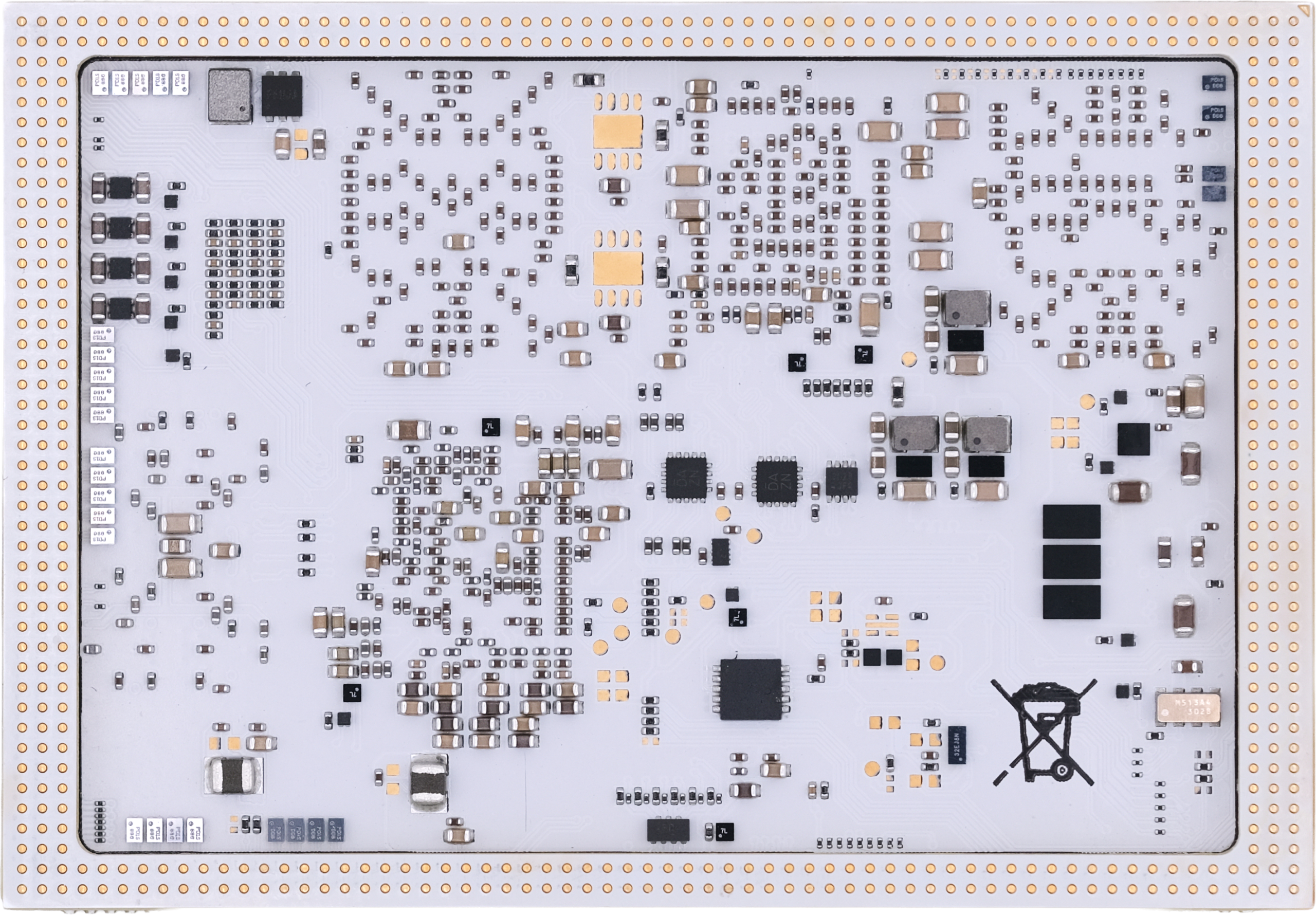

E1M-X V2N+DeepX M1
High-Performance Vision SoM with DeepX-M1 Accelerator
The E1M-X V2N-M1 is a high-performance vision SoM built on the Renesas RZ/V2N processor with a standalone DeepX-M1 accelerator delivering 25 TOPS, combined with the integrated DRP-AI3 engine offering up to 15 sparse TOPS / 4 dense TOPS. This SoM is designed for advanced multi-camera, real-time vision applications requiring maximum AI throughput.
Starting from
$179
Key Highlights
Renesas RZ/V2N Quad Cortex -A55 + Cortex-M33
Industrial temperature support
DRP-AI3 15 TOPS sparse / 4 TOPS dense
Configurable LPDDR4x + eMMC memory
Optional Wi-Fi 6 / Bluetooth 5
DeepX-M1 25 TOPS standalone accelerator
H.264/H.265 encoder/decoder (4K-ready)
Up to 8 cameras (2 × 4-lane MIPI-CSI2)
Dimensions
65 × 45 × 5 mm
CPU
Quad Cortex-A55 + Cortex-M33 200–216 MHz
AI Accelerator
DeepX-M1 25 TOPS + DRP-AI3
DRP AI3
15 TOPS sparse / 4 TOPS dense
Camera Interface
2 × 4-lane MIPI-CSI2 (up to 8 cameras)
Video
H.264/H.265 hardware encode/decode
Connectivity
Optional Wi-Fi 6 / Bluetooth 5 (up to 143 Mbps)
Temperature Range
Industrial Grade
Specification
Dimensions
65 × 45 × 5 mm
CPU
Quad Cortex-A55 + Cortex-M33 200–216 MHz
AI Accelerator
DeepX-M1 25 TOPS + DRP-AI3
DRP AI3
15 TOPS sparse / 4 TOPS dense
Camera Interface
2 × 4-lane MIPI-CSI2 (up to 8 cameras)
Video
H.264/H.265 4K encoder/decoder
Connectivity
Optional Wi-Fi 6 / Bluetooth 5 (up to 143 Mbps)
Temperature Range
Industrial Grade
Documents
Alp Lab E1M-X V2N-M1 HW Design Guide [Coming Soon].pdf
Alp Lab E1M-X V2N-M1 EVK Getting Started [Coming Soon].pdf
Alp Lab E1M-X EVK Schematic & PCB [Coming Soon].zip

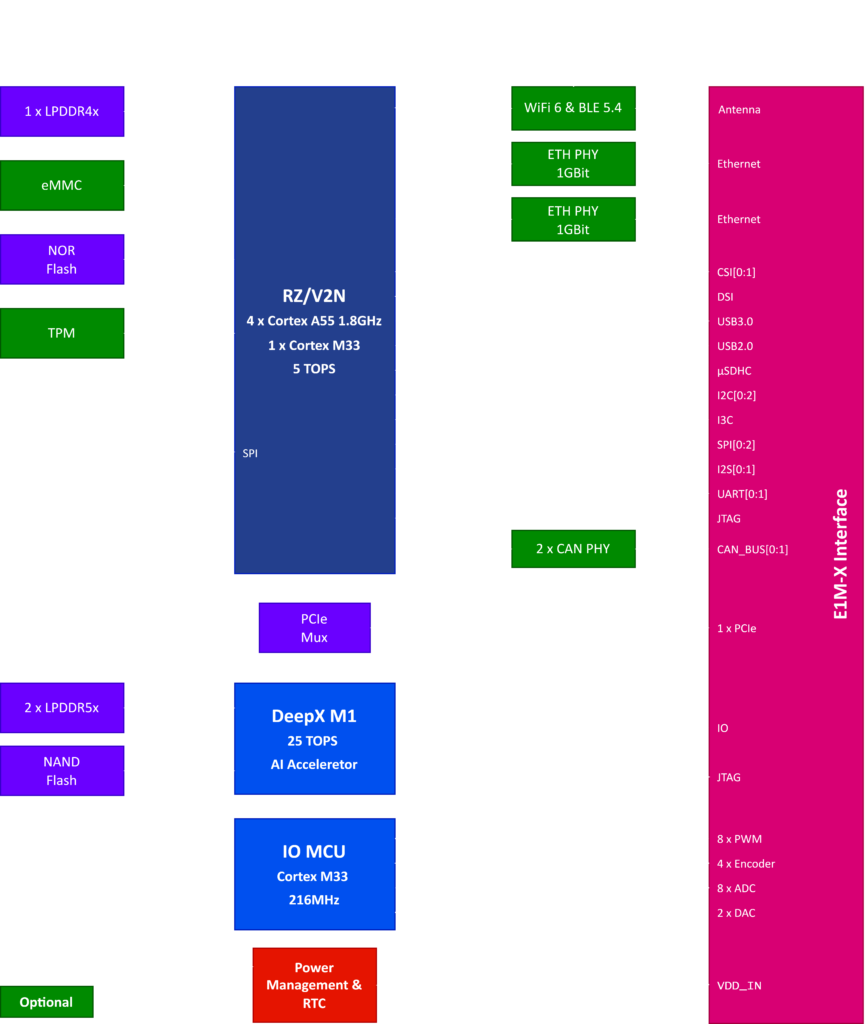

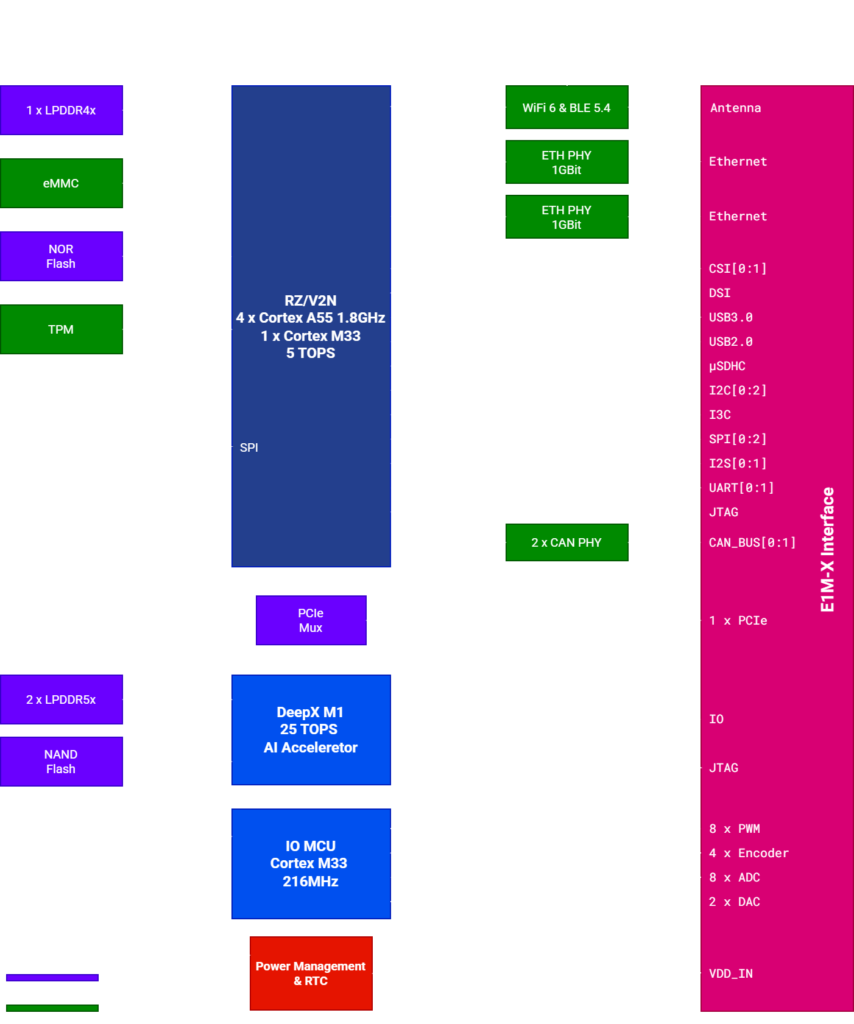

Block Diagram
This diagram presents the system architecture of the RZ/V2N-DeepX M1 based SoM, showcasing how the main Cortex-A55/Cortex-M33 processor connects with memory components (LPDDR4X, eMMC, NOR Flash), security modules, and high-speed interfaces together with the DeepX M1 AI accelerator, the IO MCU, and essential peripherals such as USB, PCIe, Ethernet, MIPI-CSI/DSI, and CAN PHY.The diagram also illustrates connectivity to optional modules, external interfaces, power management, and the full E1M-X expansion interface, forming a complete high-performance platform for AI, vision, and edge computing applications
Specification
Dimensions
65 × 45 × 5 mm
CPU
Quad Cortex-A55 + Cortex-M33 200–216 MHz
AI Accelerator
DeepX-M1 25 TOPS + DRP-AI3
DRP AI3
15 TOPS sparse / 4 TOPS dense
Camera Interface
2 × 4-lane MIPI-CSI2 (up to 8 cameras)
Video
H.264/H.265 4K encoder/decoder
Connectivity
Optional Wi-Fi 6 / Bluetooth 5 (up to 143 Mbps)
Temperature Range
-40°C to +85°C
Industrial Grade
Documents
|
Type
|
Title
|
Revision
|
Date
|
|---|---|---|---|
|
Brochure
|
1.0
|
Jan - 2026
|
|
|
Datasheet
|
0.2
|
Jan - 2026
|
|
|
Guide
|
Alp Lab E1M-X V2N-M1 HW Design Guide [Coming Soon].pdf
|
—
|
—
|
|
Guide
|
Alp Lab E1M-X V2N-M1 EVK Getting Started [Coming Soon].pdf
|
—
|
—
|
|
Schematic
|
Alp Lab E1M-X EVK Schematic & PCB [Coming Soon].zip
|
—
|
—
|
|
CAD
|
0.9
|
Dec - 2025
|
|
|
3D
|
0.9
|
Dec - 2025
|
Ordering Options
|
MPN
|
CPU
|
MPU
|
#
|
GHz
|
MCU
|
MHz
|
RAM
|
ROM
|
GPU
|
ISP
|
AI
|
WiFi / BLE
|
Temperature
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E1M-V2M101
|
R9A09G056N44GBG
|
A55
|
4
|
1.8
|
M33
|
200
|
4 GB
|
4 GB
|
Y
|
Y
|
4 + DEEPX 25 TOPS
|
Y
|
-40°C ~ 85°C
|
|
|
E1M-V2M102
|
R9A09G056N44GBG
|
A55
|
4
|
1.8
|
M33
|
200
|
8 GB
|
16 GB
|
Y
|
Y
|
4 + DEEPX 25 TOPS
|
Y
|
-40°C ~ 85°C
|
|
Alp Lab supports custom options. Please contact us.

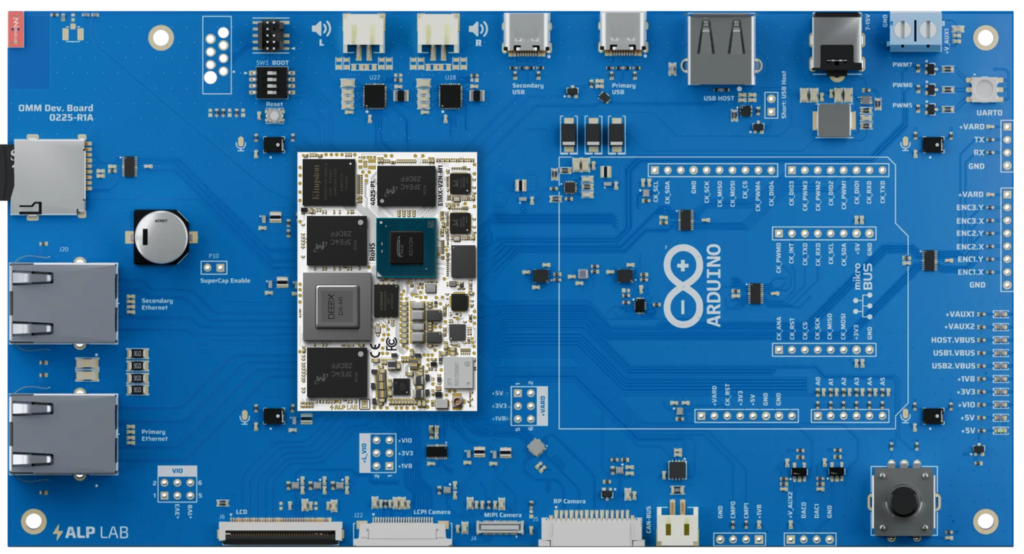

Evaluation Kit
This evaluation kit provides a complete hardware platform for testing, prototyping, and developing applications using the integrated SoM and onboard connectivity features.
