E1M Product Line

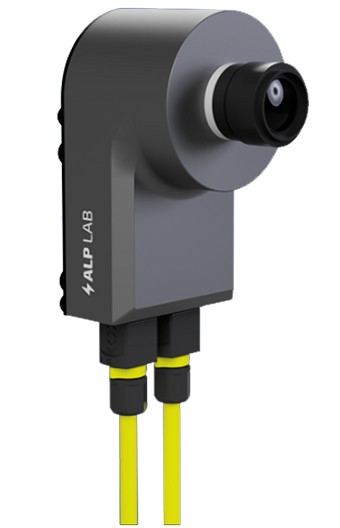

Industrial Edge-AI Camera
Powered by E1M-X V2N+M1 SoM
The Industrial Edge-AI Camera is a lightweight, all-in-one smart vision device built on Alp Lab’s E1M-X V2N+M1 module. It delivers high-performance, low-power AI processing for manufacturing, robotics, warehouse automation, and workplace safety — all inside a compact, rugged IP67 housing.
Starting from
$599
Key Highlights
Renesas V2N Processor with Long-Term Support
Compact IP67 Rugged Housing
DeepX M1 Accelerator (25 TOPS)
DRP-AI3 Onboard (5 Dense TOPS)
Customizable Sensors, Lenses & Connectivity
Ordering Options
Multiple high-quality sensor options for various application requirements
IMX662
2.14MP, 2.9 x 2.9 µm
IMX678
8.3MP, 2 x 2 µm
CPU
Quad Cortex-A55 @ 1.8 GHz
MCU
Cortex-M33 @ 200 MHz
DRP-AI Accelerator
5 TOPS Dense
DeepX M1
25 TOPS Dense Accelerator
ISP
ARM Mali-C55
Memory (V2N)
1× LPDDR4X
Memory (M1)
2× LPDDR5X
Storage
1× eMMC
Wi-Fi
Wi-fi 6 (2.4/5/6 GHz) + BLE 5.4
USB
USB 3.2 Type-C
serial
RS485 or CAN-BUS Option
I/O
2 X isolated Input + 2 x Isolated Output
Display
Display Port over USB-C
Ethernet
1× Gigabit ethernet
Lens Mount
C-Mount, CS-Mount, M12
Illumination
Optional On-Camera LED
Power
USB-C or PoE
Max Power
25 W
Size
62.5 × 117 mm
Certification
CE/FCC, IP67 or IP20
OS
Linux
Hardware
CPU
Quad Cortex-A55 @ 1.8 GHz
MCU
Cortex-M33 @ 200 MHz
DRP-AI Accelerator
5 TOPS Dense
DeepX M1
25 TOPS Dense Accelerator
ISP
ARM Mali-C552
Memory (V2N)
1× LPDDR4X
Memory (M1)
2× LPDDR5X
Storage
1× eMMC
Connectivity
Wi-Fi
Wi-fi 6 (2.4/5/6 GHz) + BLE 5.4
USB
USB 3.2 Type-C
serial
RS485 or CAN-BUS Option
I/O
2 X isolated Input + 2 x Isolated Output
Display
Display Port over USB-C
Ethernet
1× Gigabit ethernet
Factor & Power
Lens Mount
C-Mount, CS-Mount, M12
Illumination
Optional On-Camera LED
Power
USB-C or PoE
Max Power
25 W
Certification
CE/FCC, IP67 or IP20
OS
Linux
Documents
Alp Lab SmartEye - Industrial Camera Brochure.pdf
Alp Lab SmartEye - Industrial Camera Datasheet [Coming Soon].pdf
Alp Lab SmartEye - Industrial Camera User Guide [Coming Soon].pdf
Specification
Quad Cortex-A55 @ 1.8 GHz
Cortex-M33 @ 200 MHz
5 TOPS Dense
25 TOPS Dense Accelerator
ARM Mali-C55
1× LPDDR4X
2× LPDDR5X
1× eMMC
Wi-Fi 6 (2.4/5/6 GHz) + BLE 5.4
USB 3.2 Type-C
RS485 or CAN-BUS Option
2× Isolated Input + 2× Isolated Output
DisplayPort over USB-C
1× Gigabit Ethernet
C-Mount, CS-Mount, M12
Optional On-Camera LED
USB-C or PoE
25 W
CE/FCC, IP67 or IP20
Linux
Documents
|
Type
|
Title
|
Revision
|
Date
|
|---|---|---|---|
|
Brochure
|
Alp Lab SmartEye - Industrial Camera Brochure.pdf
|
1.0
|
Dec - 2026
|
|
Datasheet
|
Alp Lab SmartEye - Industrial Camera Datasheet [Coming Soon].pdf
|
—
|
—
|
|
Guide
|
Alp Lab SmartEye - Industrial Camera User Guide [Coming Soon].pdf
|
—
|
—
|
Ordering Options
|
MPN
|
CPU
|
MPU
|
#
|
GHz
|
MCU
|
MHz
|
RAM
|
ROM
|
GPU
|
ISP
|
AI
|
WiFi / BLE
|
Temperature
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E1M-V2N101
|
R9A09G056N44GBG
|
A55
|
4
|
1.8
|
M33
|
200
|
4 GB
|
4 GB
|
Y
|
Y
|
4 TOPS
|
Y
|
-40°C ~ 85°C
|
|
|
E1M-V2N102
|
R9A09G056N44GBG
|
A55
|
4
|
1.8
|
M33
|
200
|
8 GB
|
16 GB
|
Y
|
Y
|
4 TOPS
|
Y
|
-40°C ~ 85°C
|
|
