E1M-X V2N+M1

§ Specs in detail

§ Interface map

Hover an interface to see where it lands on the module footprint. Counts and groups below.

§ Ordering options

Alp Lab supports custom options.Contact salesfor a quote.

§ Module gallery

Photography and block diagrams of E1M-X V2N+M1. Click any image to zoom.

FrontZoom ↗

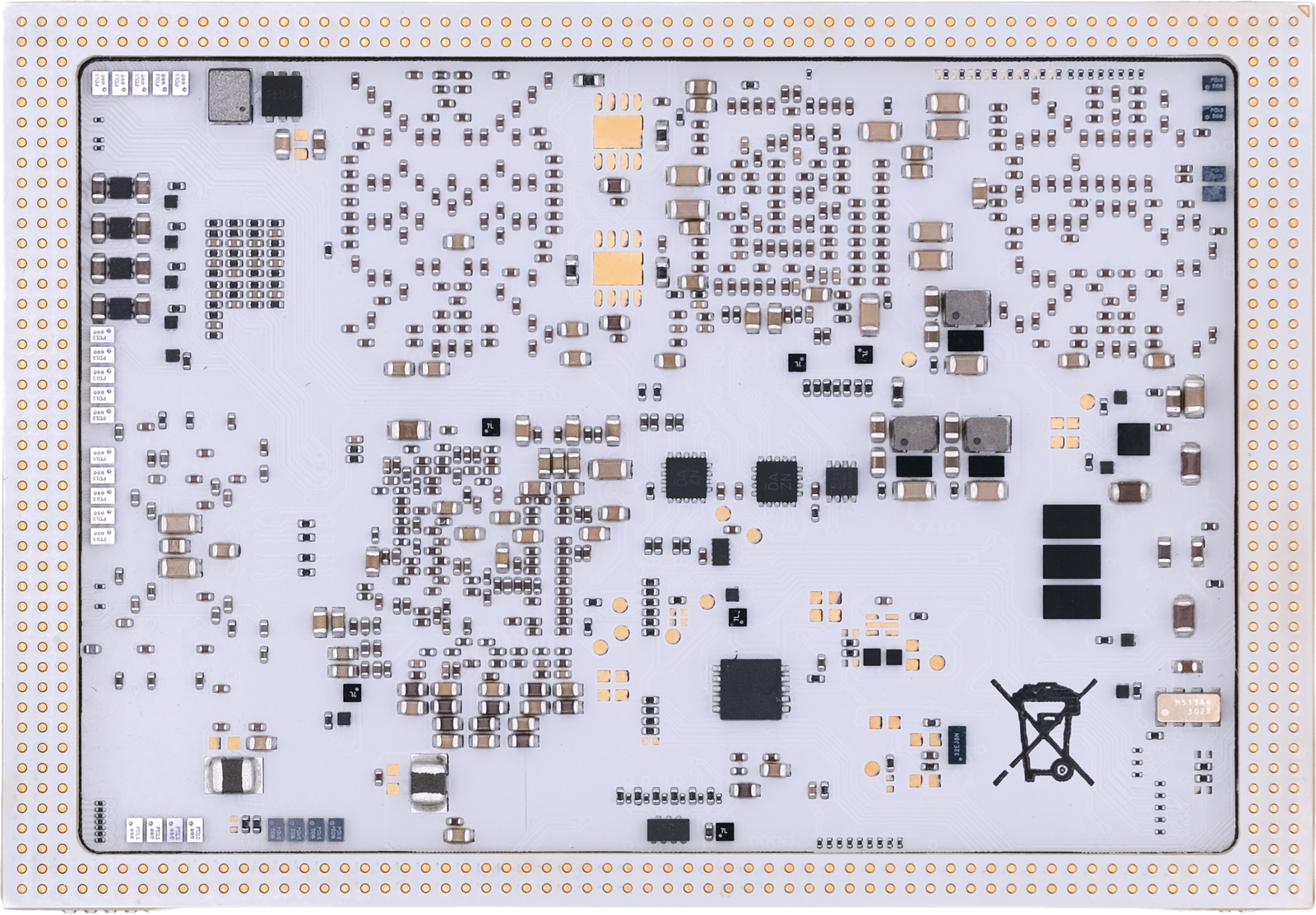

BackZoom ↗

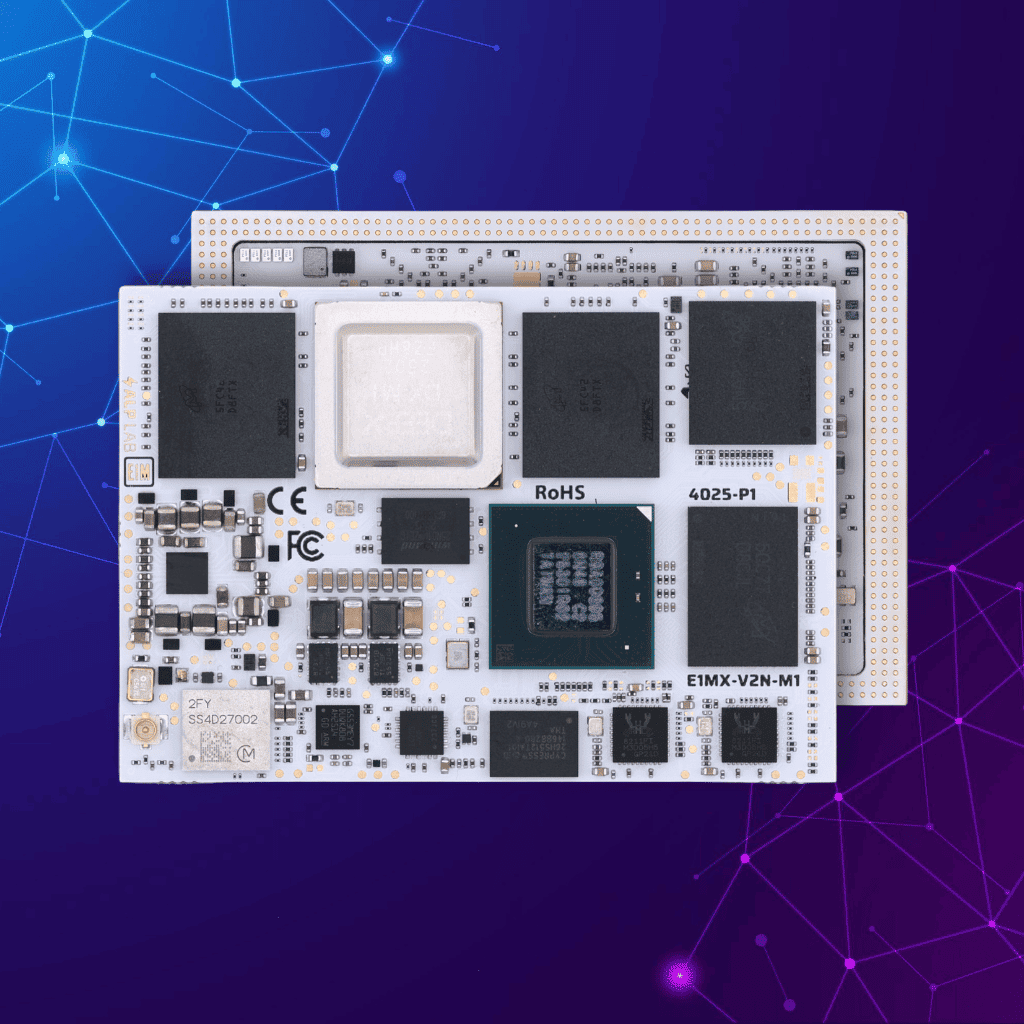

FeaturedZoom ↗

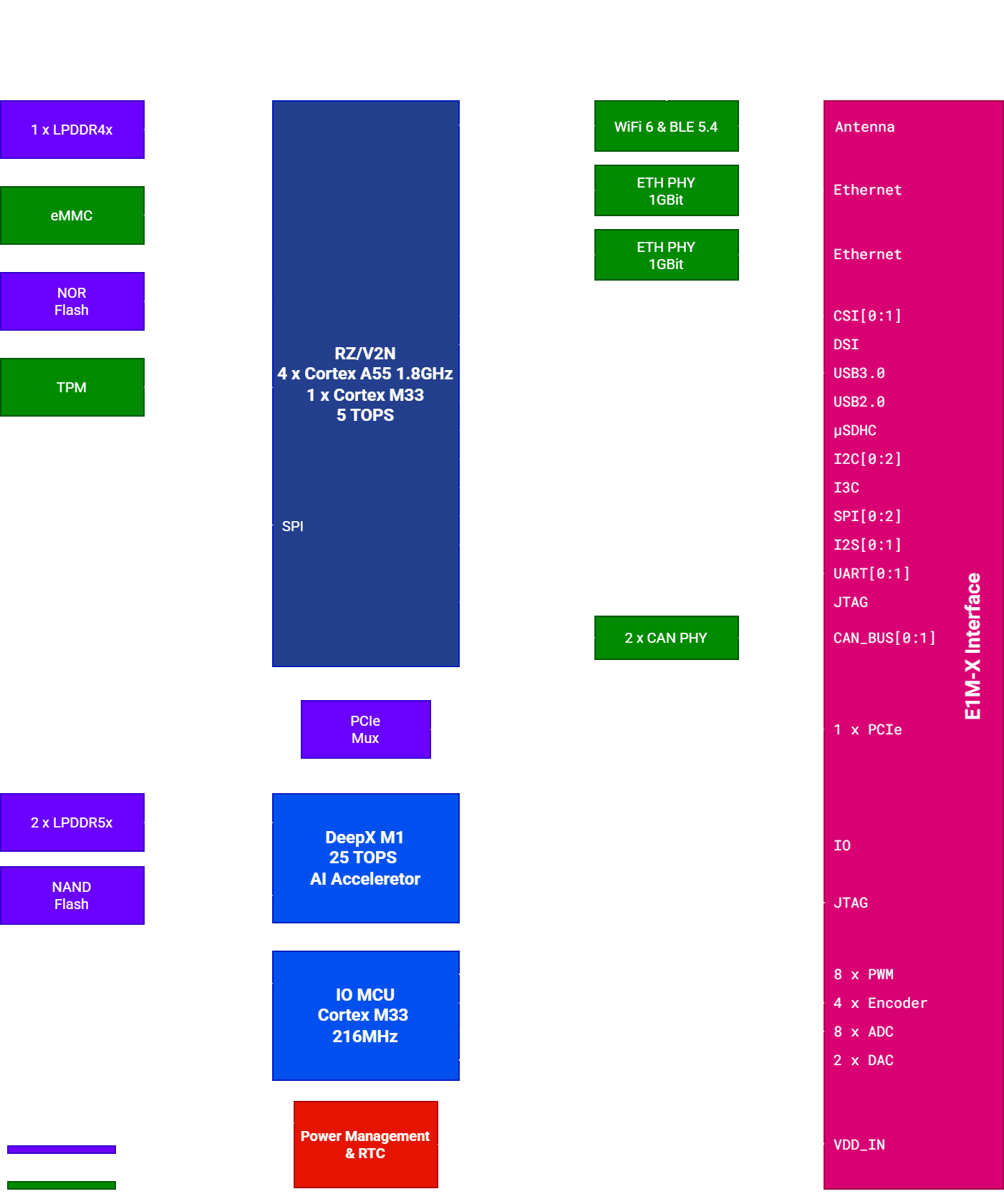

Block diagramZoom ↗

§ Where to buy

Order E1M-X V2N+M1 through our distributors

Order modules, dev kits, and production quantities. Local stock, local logistics, local support.

United Kingdom · Global

Astute Electronics

Visit distributor ↗

Germany · EU

Endrich Bauelemente

Visit distributor ↗

Israel · Levant

NISKO

Visit distributor ↗

§ Documentation

Full documentation on docs.alplab.ai ↗

§ Compliance & regulatory

Module-level declarations for E1M-X V2N+M1.

Material declarations and reliability data for the module itself. No sales gate — request a copy for design-in or audit purposes.

End-product CE / FCC / UKCA marking is the integrator's responsibility. See /compliance for what we ship vs what's yours.

§ Run on this SoM

§ Run on this SoM in 30 seconds

Same C/C++ API across every E1M module.

Drop a board config at the project root, point at your SKU, and the Alp SDK builds Zephyr / Yocto / bare-metal firmware for E1M-X V2N+M1 with no per-chip rewrites. Swap to another E1M module by changing one line.

# E1M-X V2N+M1 firmware project
som:
  sku: E1M-V2M101
  hw_rev: r1

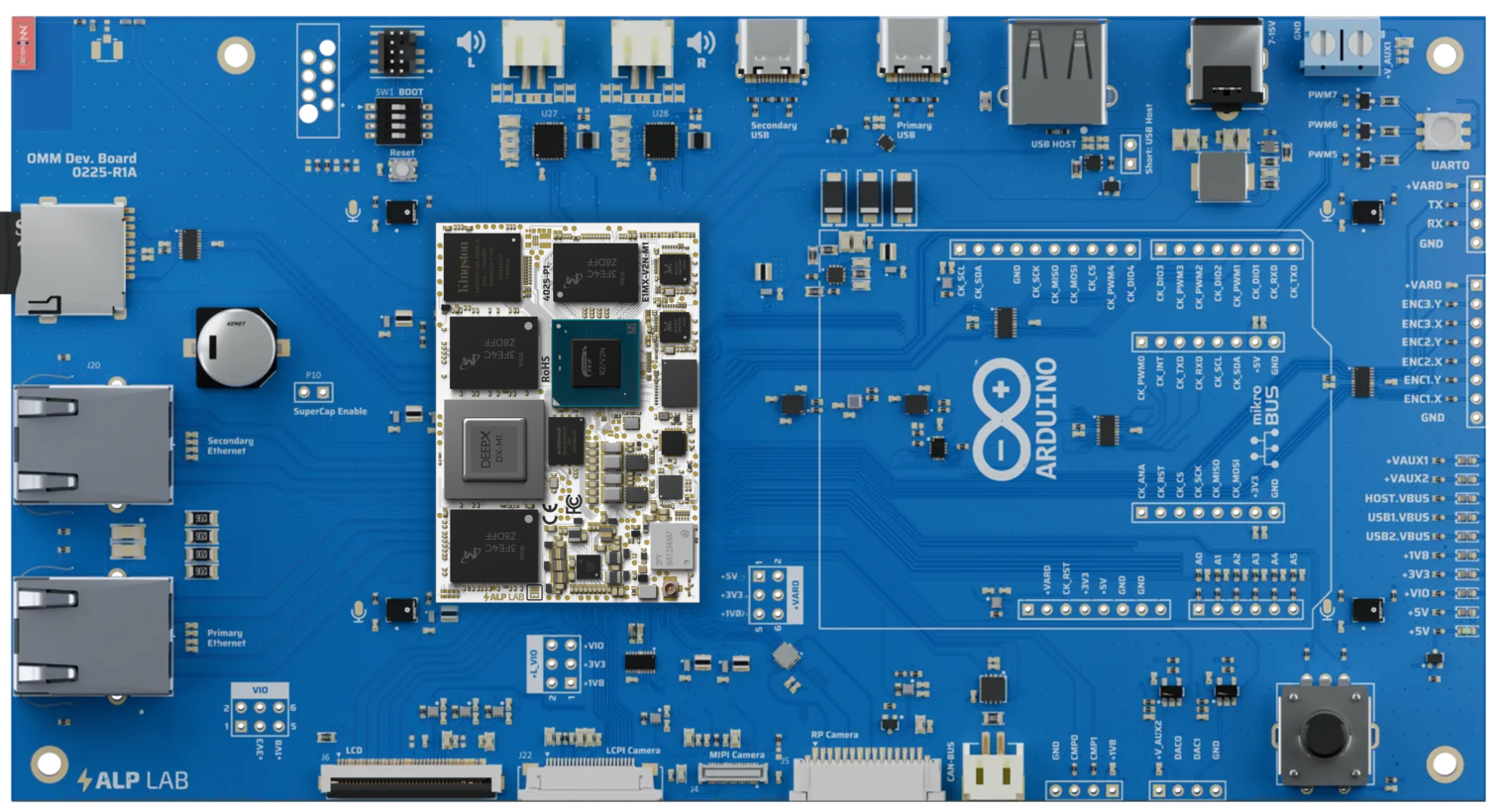

preset: e1m-x-evk

cores:
  bare_metal:
    os: bare-metal
    app: ./fw
    peripherals: [gpio, i2c, uart]

#include <alp/gpio.h>
#include <alp/i2c.h>
#include <alp/e1m_pinout.h>

int main(void) {
  alp_gpio_t led = alp_gpio_open(ALP_E1M_GPIO0);
  alp_i2c_t  bus = alp_i2c_open(ALP_E1M_I2C0);

  while (1) {
    alp_gpio_write(led, 1);
    alp_i2c_write(bus, 0x50, buf, len);
    alp_gpio_write(led, 0);
  }
}

$ git clone https://github.com/alplabai/alp-sdk && cd alp-sdk
$ bash scripts/bootstrap.sh
$ alp validate board.yaml          # schema + pin allocation check
$ alp generate all                 # bare-metal conf / DTS overlay / CMake
$ alp build && alp flash           # west build + flash for E1M-V2M101
