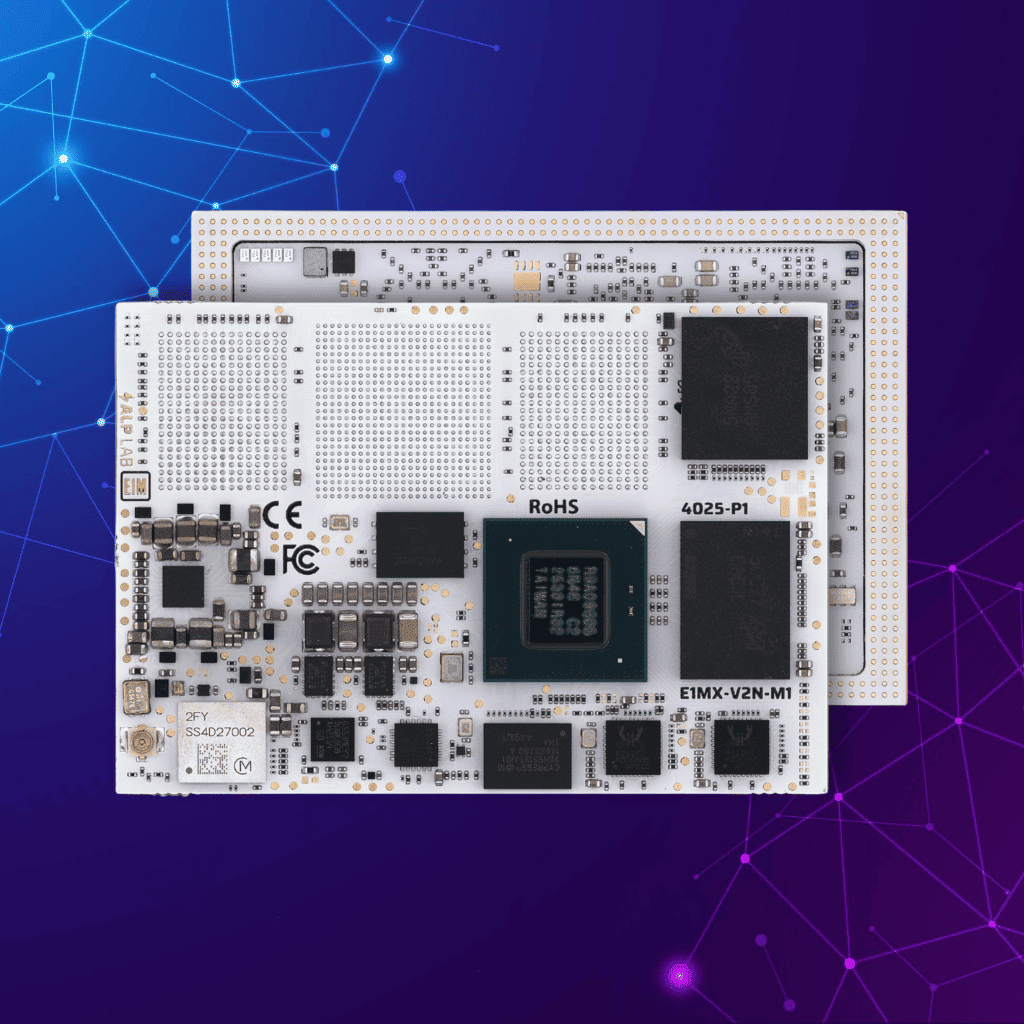

E1M-X V2N
Quad-core A55 with 4 TOPS DRP-AI3 in a 45×65 mm form factor.
Starting from
$89
In partnership with
§ Specs in detail
Compute
Interfaces
Memory
Mechanical
Environment
§ Interface map
Hover an interface to see where it lands on the module footprint. Counts and groups below.
E1M-X · 45 × 65 mm · 496 pads
Hover or focus an interface to see where it lands on the module footprint.
- · MIPI CSI-2 lane A
- · MIPI CSI-2 lane B
- · PCIe Gen3
- · USB 3.2
- · Ethernet
§ Ordering options
| MPN | SoC | MPU | # | MHz | MCU | # | MHz | ROM | RAM | GPU | ISP | AI | WiFi/BLE | Temp. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
E1M-V2N101— | R9A09G056N44GBG | A55 | 4 | 1.8 GHz | M33 | 1 | 200 | 4 GB | 4 GB | Y | Y | 4 TOPS | Y | −40 °C ~ +85 °C |
E1M-V2N102— | R9A09G056N44GBG | A55 | 4 | 1.8 GHz | M33 | 1 | 200 | 16 GB | 8 GB | Y | Y | 4 TOPS | Y | −40 °C ~ +85 °C |
Alp Lab supports custom options.Contact salesfor a quote.
§ Start prototyping
The E1M-X V2N Dev Kit bundle.
Everything you need to boot, flash, and build in one box. One quote, one ship. No part-picking.
E1M-X V2N SoM
with mounted heat-spreader
EVK carrier board
USB-C debugger · all I/O broken out
Cable + power kit
USB-C × 1, JTAG, 12 V supply
Alp SDK pre-flashed
examples + datasheet pack
Bundle starts from
$399
One quote covers the full bundle · ships from EU stock
SoM
EVK
§ Module gallery

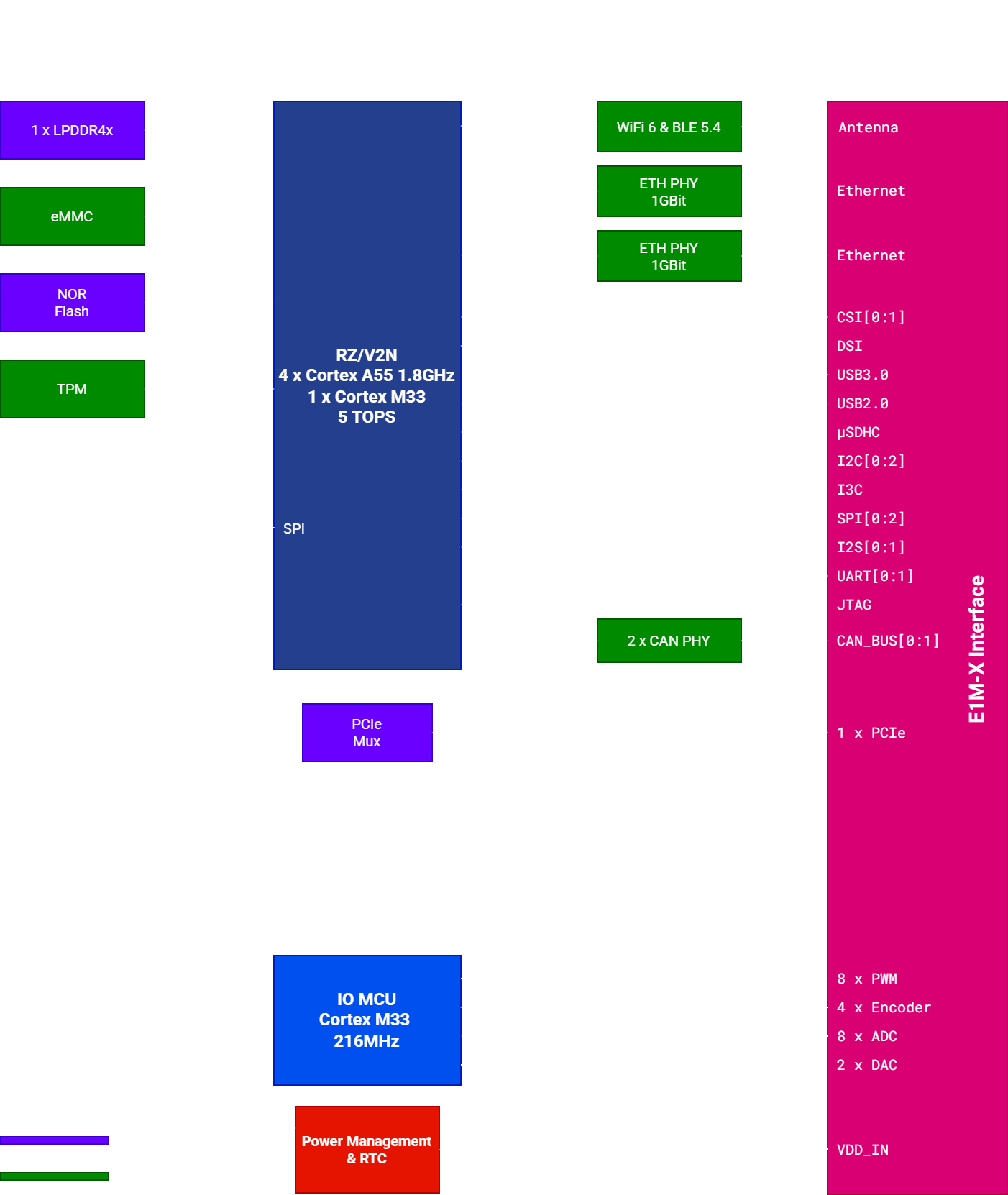

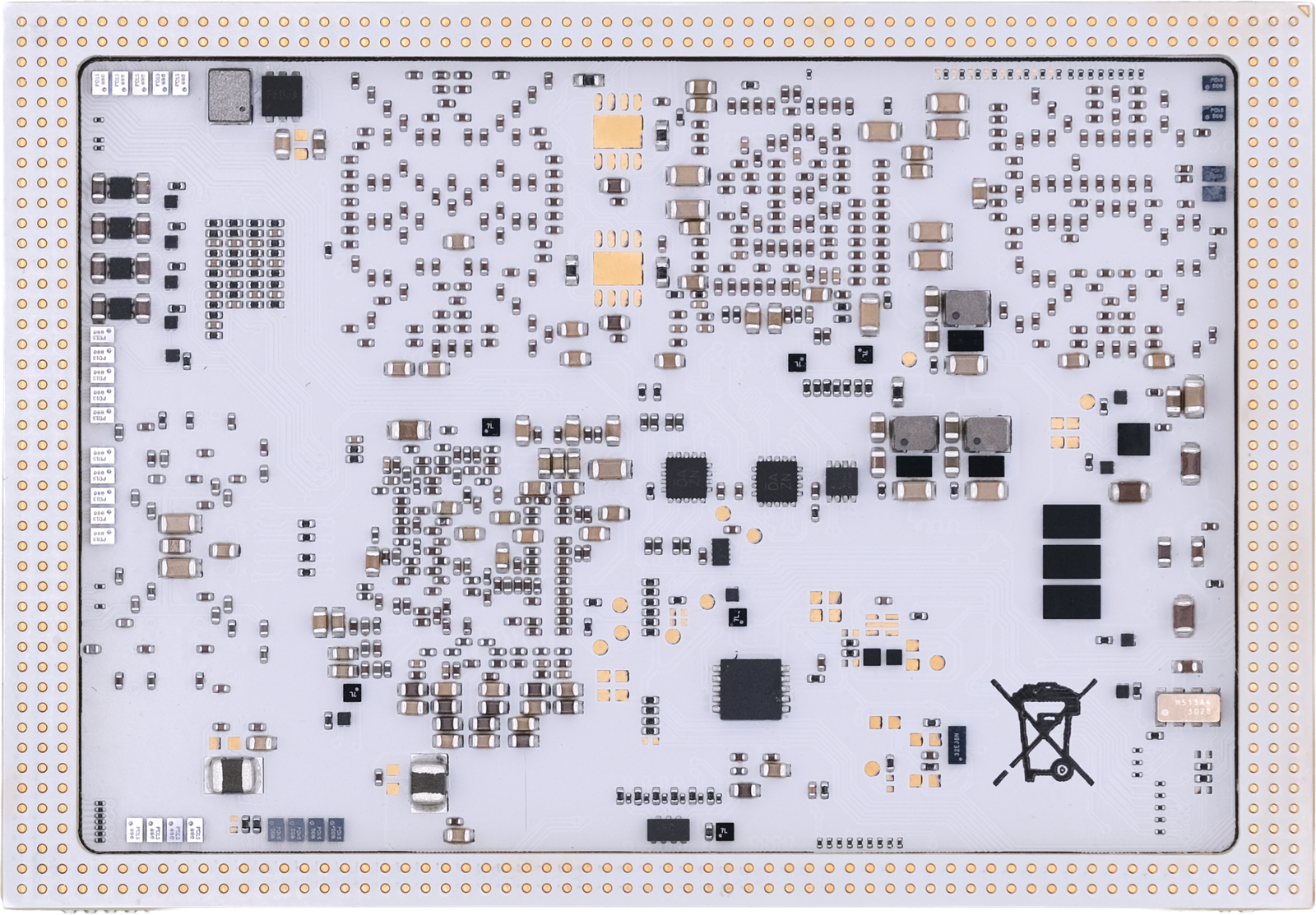

Photography and block diagrams of E1M-X V2N. Click any image to zoom.
§ Where to buy
Order E1M-X V2N through our distributors
Order modules, dev kits, and production quantities. Local stock, local logistics, local support.
United Kingdom · Global
Astute Electronics
Visit distributor ↗
Germany · EU
Endrich Bauelemente
Visit distributor ↗
Israel · Levant
NISKO
Visit distributor ↗
Don't see your region?
We ship directly from Sweden for development quantities, and we'll help you find a local partner for production runs.
